Default 2001 A6 2.8 Vacuum diagrams?

I looked all over and i cannot find any vacuum hose diagrams for my 2001 A6 2.8. Anyone have these to share? Thanks
  #2
Old 04-11-2011, 02:44 PM
1st Gear

Join Date: Apr 2011
Posts: 7
Default

Follow up. If anyone would take a picture of their vacuum setup that would work too. Thanks.
  #3
Old 04-12-2011, 12:04 AM
hxgaser's Avatar
3rd Gear


Join Date: Nov 2007
Location: Northern California
Posts: 1,970
Points: 5,940, Level: 49
Points: 5,940, Level: 49 Points: 5,940, Level: 49 Points: 5,940, Level: 49
Level up: 95%, 10 Points needed
Level up: 95% Level up: 95% Level up: 95%
Daily Activity: 0%
Daily Activity: 0% Daily Activity: 0% Daily Activity: 0%
Default

Click the image to open in full size.

There is one under your hood too.
__________________
2004 V70R M66 - Current
2001 A6 Avant - Past
2.8 ATQ, Quattro, Tiptronic
Mods - Was chipped, but not now... Was using K&N, but not now...
Repairs - Too many to list! And you wonder why I still drive an Audi So I don't drive one now.
  #4
Old 04-12-2011, 08:01 AM
1st Gear

Join Date: Apr 2011
Posts: 7
Default

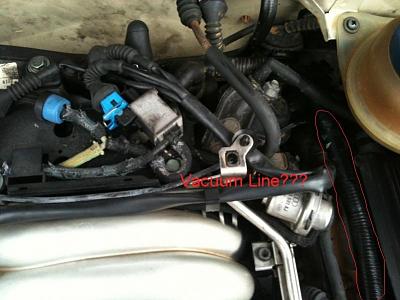

I found mine too, thank you. The only vacuum line disconnected was the reservoir. What is the name of the hard plastic line below? * Mine snapped, will it make the motor run horrible?
Attached Images
File Type: jpg 28vacuum.jpg (58.9 KB, 57 views)
  #5
Old 04-12-2011, 11:57 AM
hxgaser's Avatar
3rd Gear


Join Date: Nov 2007
Location: Northern California
Posts: 1,970
Points: 5,940, Level: 49
Points: 5,940, Level: 49 Points: 5,940, Level: 49 Points: 5,940, Level: 49
Level up: 95%, 10 Points needed
Level up: 95% Level up: 95% Level up: 95%
Daily Activity: 0%
Daily Activity: 0% Daily Activity: 0% Daily Activity: 0%
Default

That is your crank case breather hose. Yes it will make your car run rough. You can find it here.

Judging by the picture, I recommend that you pick up about 5 feet of 3/16" vacuum hose from local parts shop and replace all vacuum hoses. Just replace one at a time to track where it goes.
__________________
2004 V70R M66 - Current
2001 A6 Avant - Past
2.8 ATQ, Quattro, Tiptronic
Mods - Was chipped, but not now... Was using K&N, but not now...
Repairs - Too many to list! And you wonder why I still drive an Audi So I don't drive one now.
  #6
Old 04-12-2011, 11:59 AM
hxgaser's Avatar
3rd Gear


Join Date: Nov 2007
Location: Northern California
Posts: 1,970
Points: 5,940, Level: 49
Points: 5,940, Level: 49 Points: 5,940, Level: 49 Points: 5,940, Level: 49
Level up: 95%, 10 Points needed
Level up: 95% Level up: 95% Level up: 95%
Daily Activity: 0%
Daily Activity: 0% Daily Activity: 0% Daily Activity: 0%
Default

Oh, don't forget to reconnect the vacuum reservoir line to the front of the car. The original plastic gets really brittle. I had to replace mine just over the weekend when I was replacing the valve cover gaskets. It pretty much disintegrated.
__________________
2004 V70R M66 - Current
2001 A6 Avant - Past
2.8 ATQ, Quattro, Tiptronic
Mods - Was chipped, but not now... Was using K&N, but not now...
Repairs - Too many to list! And you wonder why I still drive an Audi So I don't drive one now.
  #7
Old 04-12-2011, 12:15 PM
1st Gear

Join Date: Apr 2011
Posts: 7
Default

Quote:
Originally Posted by hxgaser View Post
Oh, don't forget to reconnect the vacuum reservoir line to the front of the car. The original plastic gets really brittle. I had to replace mine just over the weekend when I was replacing the valve cover gaskets. It pretty much disintegrated.

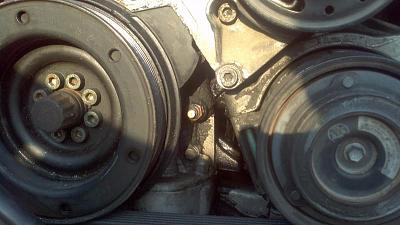

Thank you very much for the replies. Picked up silicone vacuum line and will replace them tonight. Any idea what sensor this is to the right of the crank pulley? It has a nipple connector.. maybe it needs a pigtail or something?
Attached Images
File Type: jpg sensor002.jpg (50.0 KB, 36 views)
  #8
Old 04-12-2011, 12:54 PM
chefro's Avatar
3rd Gear


Join Date: Dec 2008
Location: IL
Posts: 1,941
Points: 7,883, Level: 59
Points: 7,883, Level: 59 Points: 7,883, Level: 59 Points: 7,883, Level: 59
Level up: 67%, 67 Points needed
Level up: 67% Level up: 67% Level up: 67%
Daily Activity: 0%
Daily Activity: 0% Daily Activity: 0% Daily Activity: 0%
Default

Oil temp sensor - it screws into the oil pump housing.
__________________
'95 12V - 167,400 miles - engine rebuild + ps fluid and ATF change; switched to Mobil1Syn 0W-30 at 158,200; Purchased Dec. 2008 @ 152,100 miles - Presently 182,500 miles
  #9
Old 06-14-2012, 09:43 PM
1st Gear


Join Date: Jun 2012
Location: Fort Walton Beach, FL
Posts: 4
Points: 1,706, Level: 24
Points: 1,706, Level: 24 Points: 1,706, Level: 24 Points: 1,706, Level: 24
Level up: 6%, 94 Points needed
Level up: 6% Level up: 6% Level up: 6%
Daily Activity: 7.7%
Daily Activity: 7.7% Daily Activity: 7.7% Daily Activity: 7.7%
Default 2001 A6 2.8 Vacuum Reservoir Location?
