Default Differential Servicing C4 (1995)

Since there's no reference whatsoever in this forum about differential servicing, beside occasional advices "needs to be done", "do all front/C/rear at the same time", etc, etc, I decided to put together a thread...
Probably it will be unimportant for people who have done it, but I take my chances...
-----------------------------------------------------------------------
I had/have a "rattling" noise right after start-up for quite sometime, and when I changed the oil on 12/23 I finally traced it to the "transmission" area.
After reading more about it, I suspect/ed the differential, although I haven't touched it yet ever since I got the car.
In the hind sight, it makes now more sense why I have all the "oil" leaks in that general vicinity. I'm pretty sure now that my flange and rear seals are shot, as I read these are extremely common for the ZF models used in the C4s.
I purchased some synthetic 75w-90 (Mobil1) and today, poised by a gung-ho attitude, I got the car on the ramps. I knew exactly where the fill plug is (per Bentley), so ...Bonzai!
Man....what a progressive disappointment...
1) No drain plug
- Back in the house to look again in Bentley... "Drain" plug still pictured in the stupid illustration..."WTF?" I thetorically asked myself..
Got on the forum and searched...not much (as said before); Got on AudiWorld - C4 forum (thanks), and found indeed plenty information, although without pics or a diy. C4s - indeed the front defferential has no drain plug; not that's important much.
Also, it sounds (and after going back under the car, it also looks) like are two alternatives:
a) Remove the CV axle, AND the flange (and have the opportunity to change the seal - however difficult it may be without the proper VAG tools); or
b) Remove the downpipes/cats.
-
2) My WalMart ramps don't "lift" the car high enough on the garage gravel floor, so I'll need to find a different place to do it, with a concrete floor where I can raise it higher.
----------------------------------------------------
Hence I'll continue the thread when making some progress on the matter.
I had also two unrelated discoveries:
- Found the source of the "thuds" I experience, even after replacing the struts all-around: a control arm bushing
- Although I was living under the impression that my ZF box is FLE (when I changed the ATF 1 1/2 yr ago didn't bother to wipe clean the serial number tag), in reality my ZF box is:
4HP18CJE. Needless to say that I let out another WTF?...
-
(to be cont'ed)
Attached Images

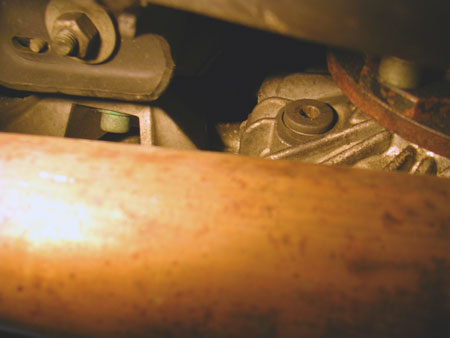

File Type: jpg 02-FillPlug.jpg (22.8 KB, 16 views)

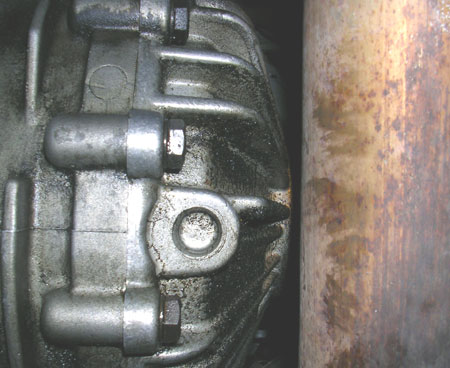

File Type: jpg 03-NoDrainPlug.jpg (41.6 KB, 16 views)

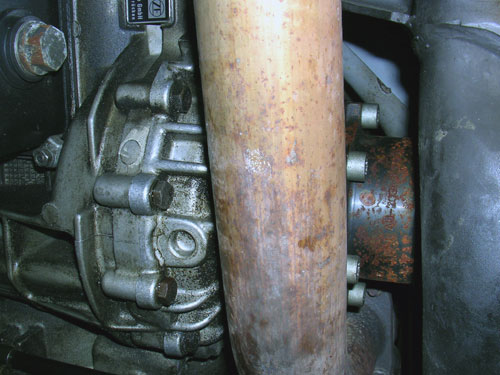

File Type: jpg 04-NoRoomForWrenchOrSocket.jpg (48.9 KB, 14 views)

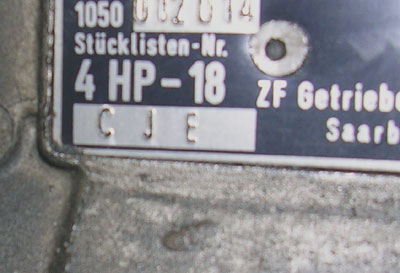

File Type: jpg 05-ZFTrannyNumber.jpg (25.7 KB, 13 views)

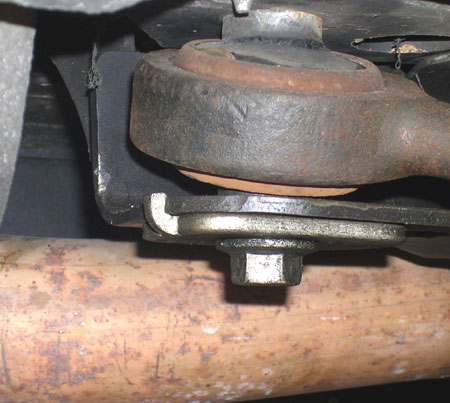

File Type: jpg 01-BadControlArmBushing.jpg (43.7 KB, 11 views)
