Need help with part #
#2
also here in this link in steps 17,18,37 and 38 black metal bracket.
http://www.goapr.com/support/bipipe_installation.pdf
http://www.goapr.com/support/bipipe_installation.pdf
#3
I think I may have the part number its one of them. Any one know the right one?
078 109 133 B bracket for toothed belt cover
078 109 133 A bracket for toothed belt cover
Search audiusaparts.com they have both.
just not sure what one I need for 2000 a6 2.7
Anyone have one? I'm sure same parts on the S4
http://www.vagcat.com/epc/cat/au/A6A...47/49/3070446/ #25
078 109 133 B bracket for toothed belt cover
078 109 133 A bracket for toothed belt cover
Search audiusaparts.com they have both.
just not sure what one I need for 2000 a6 2.7
Anyone have one? I'm sure same parts on the S4
http://www.vagcat.com/epc/cat/au/A6A...47/49/3070446/ #25
#4

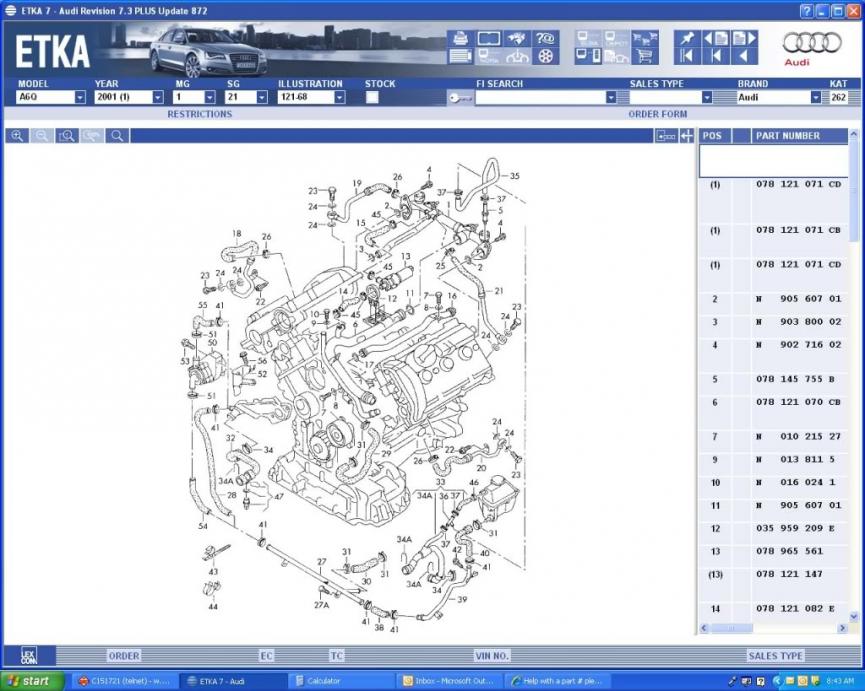

#52 is a bracket 078-121-521-F for 35.84, 53 is a bolt N-101-244-08 for .68, 56 is a bolt N-100-835-01 for 1.74 dollars. The bracket for toothed cover 078-109-133-B is for the allroad 2.7, and the 2.7 A6 apb engine uses the 078-109-133-A, 24.92 for it. Any questions please let us know. Thanks, Jeff.
