Coolant flange location
#1
Coolant flange location
I'm trying to change the coolant flange in my 01 audi a4 1.8 turbo. The problem is that I've been following a DIY but I'm not able to locate the coolant flange, can someone post a clear picture so I can get an idea of were it is, I know it supposed to be behind the motor but I cant seem to find it.
#2
Welcome to AF!

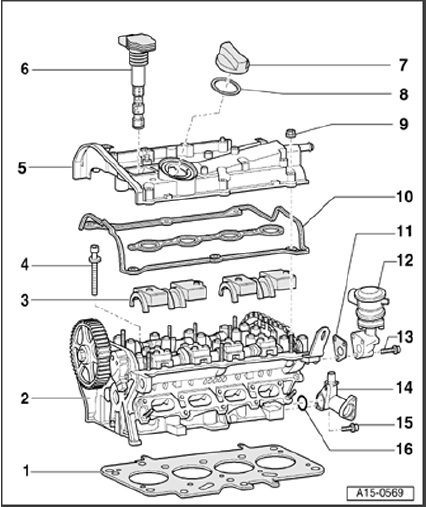

The flange you're looking for is on the back of the cylinder head, below and to the driver's side of the combi valve. I posted an exploded view of an AWM head for you. The combi valve can be seen more easily than the coolant flange, it's shiny and round. Find that (#12 in the diagram), then look down and to the right, if you're standing in front of the car. You'll see the coolant temperature sensor plugged into a black flange, that's the coolant flange. It's #14 in the diagram. Hope that helps!
