Default DIY: HID Upgrade/ Cheaper Replacement for Dead Ballast

Write Up By: Joseph House
Have Questions: email me at [email protected].
Parts Needed:
10mm Deep Socket
Multiple Extensions
Torx Set
Solder iron
Shrink Wrap
Wire Strippers/cutters
Phillips Screw driver
Xenon Ballast/Bulb Set, with wiring. Check out this guy, he is awesome, on ebay username
silviaman61336, and xhidoutlet. Make sure you get it with D2S connector and adapter. Cost me
90.79 for the brighter 55w kit with connectors.
The adapters are called "d2s pigtails" they are for the "amp connectors"

1. First Remove headlights, use this diy for that
1) Jack up, remove front wheels
2) Remove front part of fender liners
3) Remove the 2 10mm nuts on studs at the corners toward the sides holding the nose to the body shell. Loosen 2 torx
bolts holding black side clip
4) Remove the 6 torx bolts along the top of the nose
5) Remove 2 phillips screws at the bottom
6) Pull nose off, unclip aliens.

 Name:  Bumber-Parts_000.jpg
Views: 235
Size:  9.9 KB

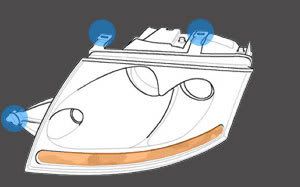

Remove the 3 TORX BOLTS
1) Remove front one
2) Remove top one
3) Loosen bottom one (from inside the wheel well) and flip support bracket out of the way
4) Wiggle out and unplug
Name:  HBolds.jpg
Views: 206
Size:  9.1 KB
2. Once you remove the headlights, remove black plastic cover from headlight.
Name:  backcover.jpg
Views: 208
Size:  37.4 KB
3. Remove Ballast, and unplug wire harness from ballast, there are 3 Phillips screws holding this
in.(The piece you will be removing is shown before.)
Name:  DSC00736.jpg
Views: 203
Size:  118.3 KB
4. Push the tabs on the top and bottom of the plug to force through hole, and play with the plug until you can get it to come out through the back opening where the cover was previously. You will need to remove High Beam Bulb and holder, its still a tight fit. (The plug shown below is the plug needed to be pushed through.)
Name:  img015.jpg
Views: 204
Size:  44.7 KB
Name:  img019.jpg
Views: 204
Size:  53.9 KB
5. Cut off connector from Ballast, you only need the Yellow and the Brown Wire, the green
black and red are the wires that went to the original igniter. (This is the step some of you may not like, I cut mine with an inch left on the plug side, so you can always solder the plug back on if you ever have to, you can see the yellow and brown you need stripped below.)
Name:  img022.jpg
Views: 207
Size:  42.2 KB

6. Take the back cover and drill a one-inch hole about an inch in from the opposite end of where you have the two tabs.(Sorry forgot to take a picture, so I photoshopped this one)
Name:  hole.jpg
Views: 204
Size:  37.9 KB
7. Mount ballast in original location with wires pointing back. Make sure to use the double-sided tape to cover up where the hole is from the oem wiring harness. You can use one of the brackets that were provided with the kit to bend and mount similar to how it’s pictured below.
Name:  img023.jpg
Views: 205
Size:  45.7 KB

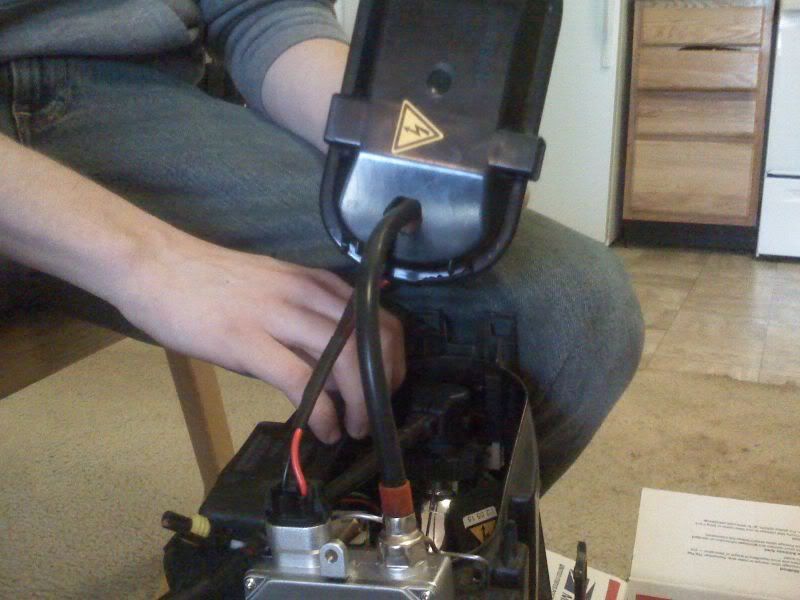

8. Now feed the wires from the ballast through the hole you drilled in the back cover.
Name:  img040.jpg
Views: 205
Size:  59.7 KB
9. Change bulb to new bulb provided if u went with the 55w kit like I did, if you stayed with the 35w your stock bulbs would be fine.(No picture needed)

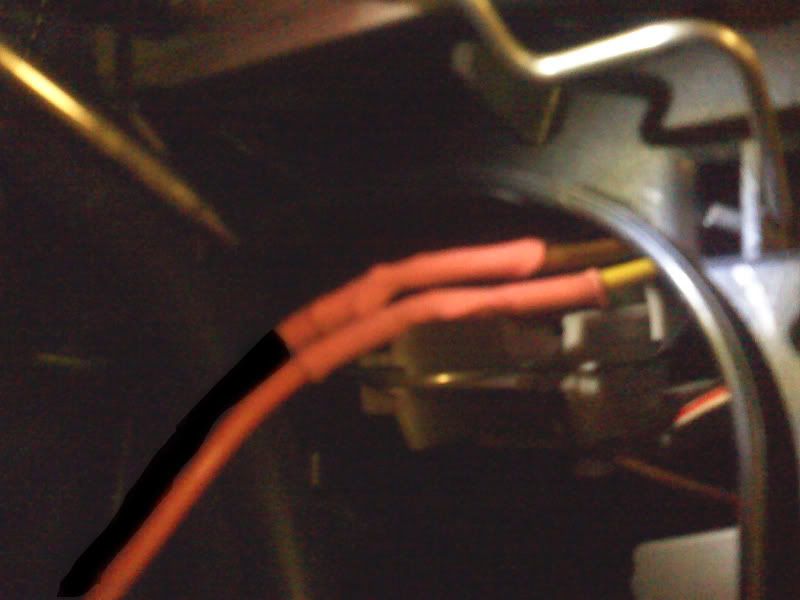

10. Strip your yellow and Brown oem wiring, and strip the black and red from your kit. Shrink wrap and solder Black to brown and yellow to red.
Name:  img041.jpg
Views: 203
Size:  47.8 KB
11. Connect amp connectors to the amp connectors on the wire coming from the bulb. You will be connecting the wires that have a plug coming from the ballast and then the one with similar plugs coming from the wires on the bulb. (You will be connecting the connectors below with the ones that are from the ballast.
Name:  img039.jpg
Views: 204
Size:  52.1 KB

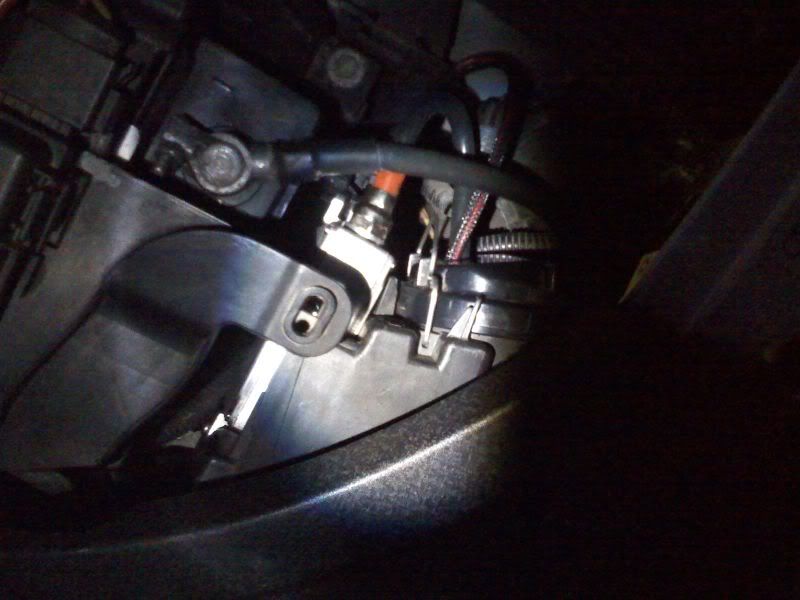

12. Make sure everything fits up nice with the cover back on. Lock the cover with the metal clip.
13. Go Test.
Name:  img042.jpg
Views: 218
Size:  49.0 KB
14. If a side doesn’t work change the way you have wire going into the ballast. There is a red and black plug going into the ballast that is reversible, if that doesn’t work check to make sure your amp connectors are tight. If you still have a problem, contact the tech support from the people you bought it from, if you got it from where I did, because they are great. And If you followed the directions, everything is soldered and connected right and they can provide additional support.
15. Leave them running for about 10 minutes, make sure everything is good and tight, and no flicker. You don’t want to have to take bumper off to fix something. So make sure its all good first.
16. Reassemble.
Here are some teasers:
Name:  img043.jpg
Views: 207
Size:  45.1 KB
Name:  img044.jpg
Views: 205
Size:  41.6 KB

Last edited by jhsoccerodp; 02-05-2009 at 12:28 AM.
Reply With Quote
Old 02-04-2009, 07:48 PM
keefboz's Avatar
1st Gear

Join Date: Mar 2008
Location: Virginia Beach, VA
Posts: 403

Nice write up, doesn't look too hard, may be doing this mod this weekend myself now!
Reply With Quote
Old 02-04-2009, 08:41 PM
1st Gear
Thread Starter
Join Date: Jul 2008
Location: Hagerstown,MD
Posts: 284

it will look amazing, i think 8ks look best on th 55w kit, since the 6ks look like a stock bulb on 55w. Color wise, but either way the it will be brighter. the K is kelvin number, just color. for the people who are confused as to what it means
Reply With Quote
Old 02-04-2009, 10:52 PM
2nd Gear

Join Date: Nov 2006
Posts: 802


Is that the 8k in the shots? does it look blue? (1st pic looks white...)
Reply With Quote
Old 02-04-2009, 11:12 PM
1st Gear
Thread Starter
Join Date: Jul 2008
Location: Hagerstown,MD
Posts: 284

yea thats the 8ks they do have a blue tint, you can tell when it shines on the road
Reply With Quote
Old 05-11-2011, 05:53 PM
1st Gear
Join Date: Jun 2008
Posts: 11

Sorry for reviving an old thread, but I think it is pertinent. Does this mod result in bulb failure indicator on the dash?
Reply With Quote
Old 11-28-2011, 04:59 PM
1st Gear
Join Date: Nov 2011
Posts: 3

Same question. How is it holding up and does it eliminate the bulb failure onthe dash?
Reply With Quote
Old 03-25-2012, 10:48 PM
1st Gear
Join Date: Feb 2012
Posts: 35

Is that the 8k in the shots?
Reply With Quote
Old 03-26-2012, 08:30 AM
1st Gear
Join Date: Nov 2011
Posts: 3

Originally Posted by funvtec View Post
Same question. How is it holding up and does it eliminate the bulb failure onthe dash?
Just an update. I've had this done for about 3 months now. Everything is working fine. No bulb failure icon. However I think this may eliminate all bulb failure icons. At the time of my retrofit I also had a burned out signal bulb that didn't show up on the dash display once I finisht the HID install
Reply With Quote
Old 04-11-2012, 02:57 PM
1st Gear
Join Date: Feb 2012
Posts: 104

im wanting to do this, seems a whole lot cheaper than just replacing one bulb.


is your beam level adjustable with the manual levelers on top of the light?

did you lose all your cruise control function and any bulb failure warnings?
