Default A8L tiptronic automatic to manual 6-speed 01E

im converting my A8L to manual. just sharing some pics, advice and any hurdles I came across.... not step by steps.
any questions please ask
this will be slow but it is happening
THESE ARE IN NO ORDER I do apologize for that but limited time with computer access.
just thought the visual would help a lot of people out.... more then likely on other projects just having some of these components

Last edited by glenbjackson; 05-06-2015 at 11:23 PM.
Reply With Quote
  #2
Old 04-11-2015, 11:36 AM
glenbjackson's Avatar
1st Gear
Thread Starter

Join Date: Jul 2014
Location: hampton, va
Posts: 39
Default steering wheel

Name:  11011125_10104020575796352_8351147287777036754_n_zpsowzoafks.jpg
Views: 152
Size:  134.1 KB
this is kinda how you'd start
Name:  11136698_10104020575292362_6281774974634827579_n_zpsegexolbz.jpg
Views: 150
Size:  52.3 KB
take off airbag by screws in back of wheel
Name:  11091540_10104020573910132_8914827462787112609_n_zpsucc3ayzt.jpg
Views: 147
Size:  85.7 KB
then you're here. the black wire take off from this side because
Name:  10646875_10104020573570812_3604471664037123279_n_zps6biatv2l.jpg
Views: 150
Size:  163.9 KB
it will look like you can disconnect from here(rotating piece) but you CANNOT smh...it looks like a disconnect but is not

Name:  11011521_10104020573246462_5523381261631462431_n_zpskj4opapi.jpg
Views: 148
Size:  39.2 KB
one screws holds ligh signal module on remove....
Name:  11150773_10104020571899162_788454446822458321_n_zpsyy5ycttg.jpg
Views: 148
Size:  145.2 KB
comes free
Name:  1452524_10104020574478992_5371570784861797122_n_zps1tklnbgb.jpg
Views: 150
Size:  221.3 KB
WARNING if you take off rotating piece from signal module this ribbon will unravel


Name:  1509285_10104020571345272_8886184511857810493_n_zpsndce34c2.jpg
Views: 148
Size:  117.5 KB
tiptronic cable lock... put key in and turn to 'on' position to remove

Last edited by glenbjackson; 02-12-2016 at 12:30 AM. Reason: order
Reply With Quote
  #3
Old 04-11-2015, 11:49 AM
glenbjackson's Avatar
1st Gear
Thread Starter

Join Date: Jul 2014
Location: hampton, va
Posts: 39
Default

no order just pics used a Passat master.
perfect design for the tight fit
Name:  20419_10104020570971022_6930975134019027334_n_zpsaqarq8yg.jpg
Views: 145
Size:  212.0 KB
Name:  11138173_10104020561095812_6840787476447128125_n_zpshwdiqfor.jpg
Views: 147
Size:  183.1 KB

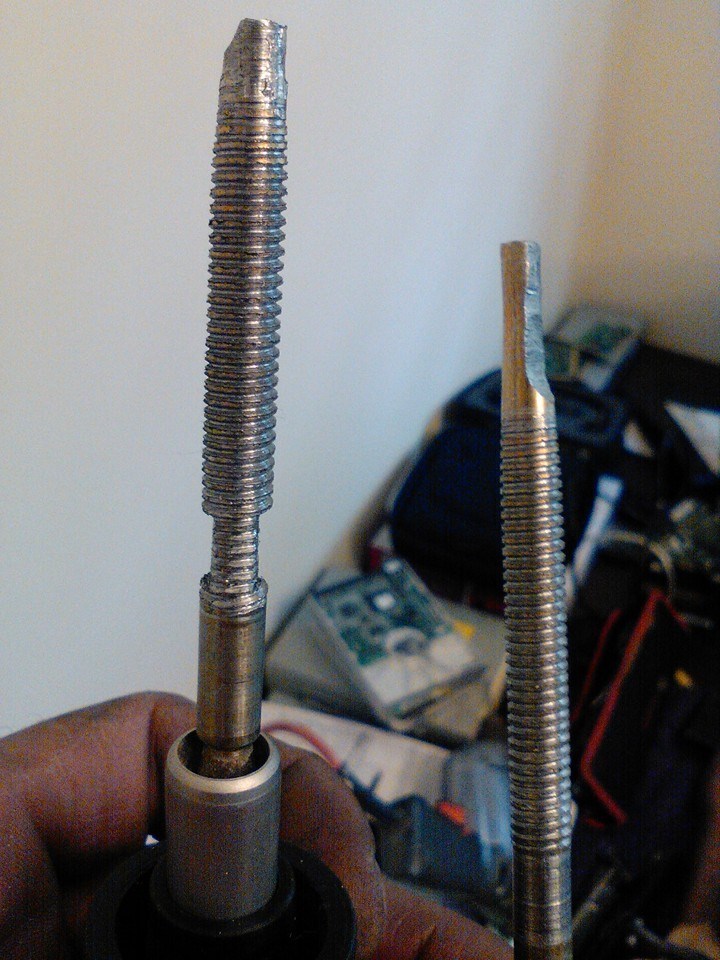

Name:  11147182_10104020560302402_1362627635296702245_n_zps84xktvmn.jpg
Views: 147
Size:  159.2 KB
Name:  10382762_10104020559563882_3384673460893408286_n_zpsw08dllfu.jpg
Views: 147
Size:  177.1 KB

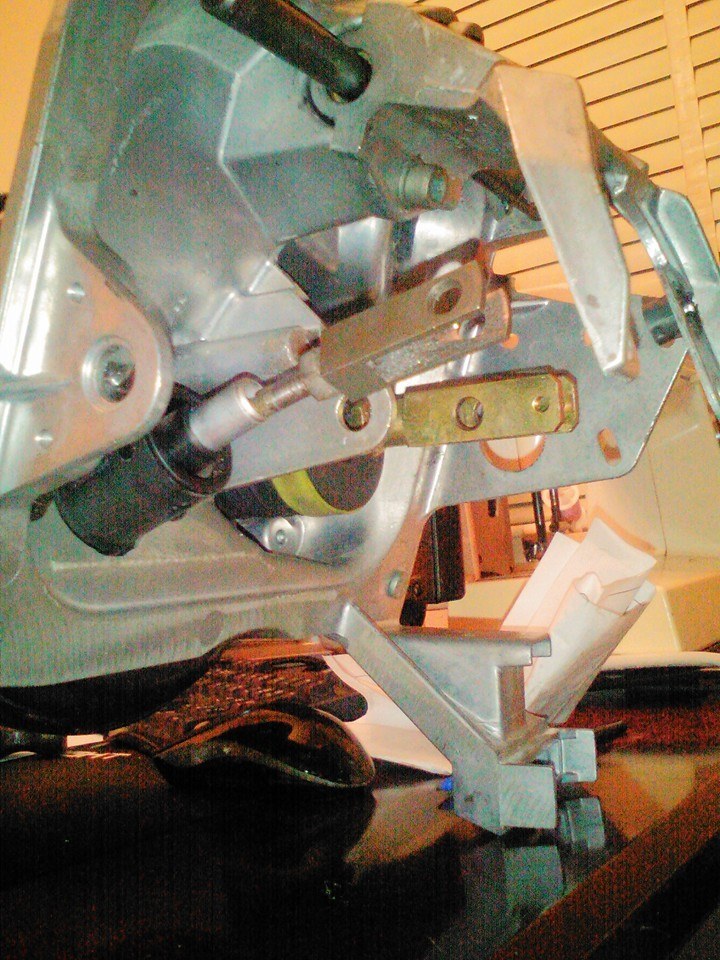

Name:  11027447_10104020558630752_543211919296971155_n_zpstw6hcxqt.jpg
Views: 150
Size:  199.9 KB

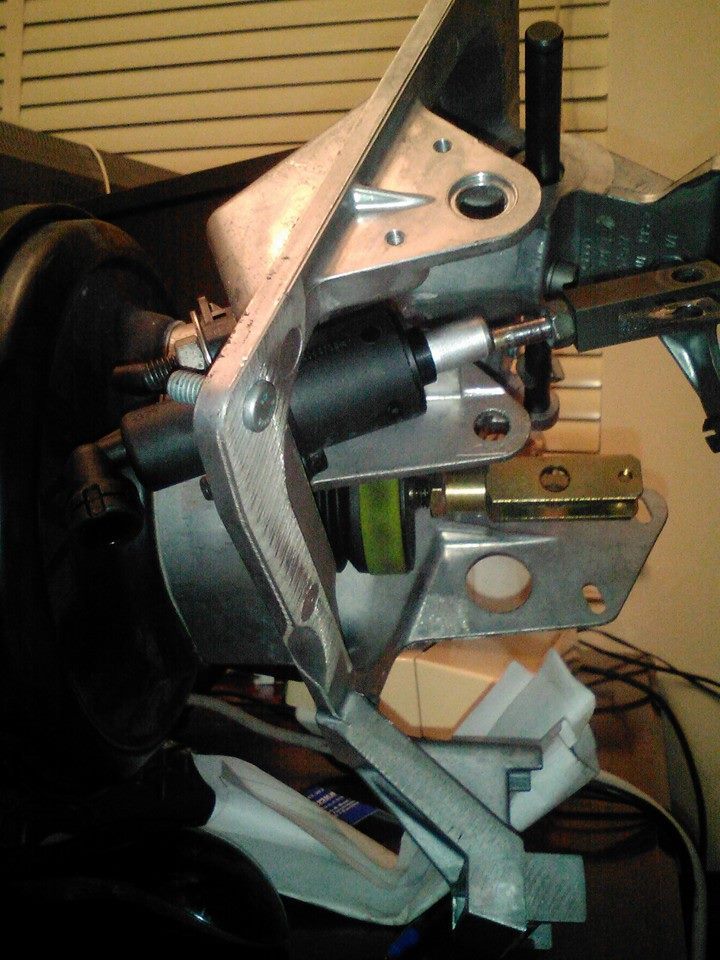

Name:  11130283_10104020557932152_8944440084471797030_n_zps9fjcq7ft.jpg
Views: 178
Size:  125.9 KB

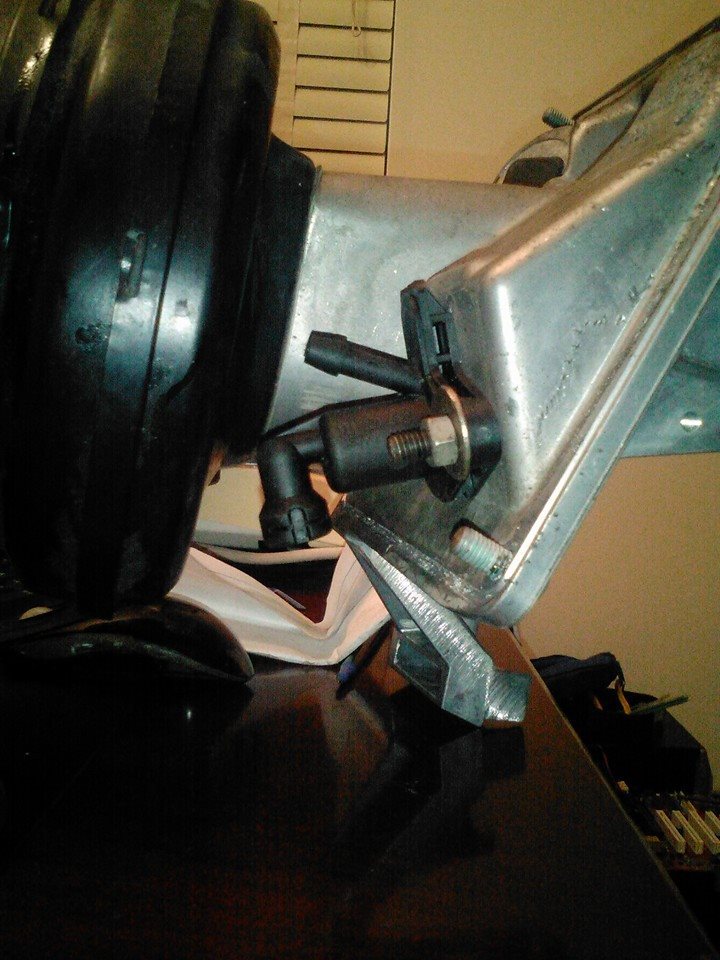

Name:  11129900_10104020557423172_7281431702081335303_n_zpslaht3uzy.jpg
Views: 147
Size:  128.6 KB
Name:  11113275_10104020556874272_616693924150876833_n_zps6qtzvejd.jpg
Views: 146
Size:  229.4 KB

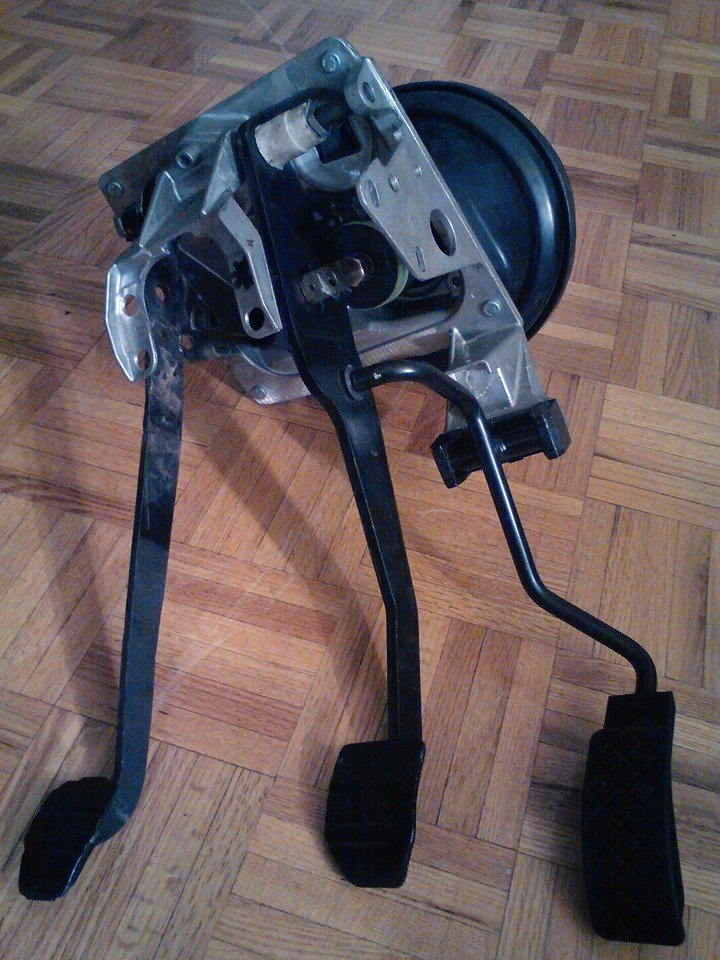

Name:  11017484_10104020556365292_8930004092635053409_n_zpsjll0hxps.jpg
Views: 147
Size:  178.0 KB

Last edited by glenbjackson; 02-12-2016 at 12:28 AM.
Reply With Quote
  #4
Old 04-11-2015, 11:52 AM
glenbjackson's Avatar
1st Gear
Thread Starter

Join Date: Jul 2014
Location: hampton, va
Posts: 39
Default

the two trans
Name:  11224784_10104175465007132_3917451224730113235_n_zpshnkqcies.jpg
Views: 144
Size:  204.7 KB
Name:  20991_10104032859265182_6779370910332710226_n_zpsbqmrolhj.jpg
Views: 145
Size:  147.2 KB
Name:  17641_10104175464917312_7674365971768620149_n_zps8sloddfu.jpg
Views: 144
Size:  198.1 KB
CPS on 01e is above dowel pin.....
Name:  11377224_10104175464787572_8211563916506504995_n_zpsjploolkq.jpg
Views: 147
Size:  183.3 KB
CPS on auto is below dowel pin
Name:  11147082_10104032876864912_1365619240982940041_n_zpsieptp8zo.jpg
Views: 145
Size:  252.0 KB
I rebuilt this awhile back. Had the locked 1 and 2 selector hub.
Name:  11060247_10104020566390202_7569403988651696917_n_zps7hmrmwlq.jpg
Views: 146
Size:  152.5 KB
this is a way to pull the back off a 01e
Name:  10580189_10104032869265142_5661684120156725535_n_zpsjdq3iczv.jpg
Views: 154
Size:  144.5 KB
Name:  10247813_10104032866924832_4244662739361415049_n_zpscg7ycha1.jpg
Views: 154
Size:  94.0 KB
Name:  11150339_10104032866151382_162122252517593397_n_zpsn1epdw7g.jpg
Views: 152
Size:  161.3 KB
Name:  10557371_10104032865188312_8349162371850402356_n_zpsha4p0hii.jpg
Views: 150
Size:  85.2 KB

01e length
Name:  11128849_10104032862363972_4777937042971651812_n_zpsn0pmqzay.jpg
Views: 182
Size:  196.4 KB
auto length
Name:  10985863_10104032861445812_1503061005568020727_n_zpsozu0jxda.jpg
Views: 148
Size:  247.6 KB

driveline

Name:  11061265_10104032868132412_5645818561586339427_n_zps9a5lws9a.jpg
Views: 145
Size:  202.0 KB
above was a EUC, have to get one with a 4.11 ratio to match trans

Name:  10358880_10104032863317062_2357770609447455092_n_zpsbt6o0pfl.jpg
Views: 148
Size:  199.0 KB
Name:  11130180_10104032860687332_3944844053065817403_n_zpsieqzhe5y.jpg
Views: 148
Size:  91.9 KB
Name:  11128358_10104020569738492_1065329342741646291_n_zps0g8fdc4a.jpg
Views: 149
Size:  117.6 KB
Name:  19494_10104020569174622_2220919698293960838_n_zpsx51kjczd.jpg
Views: 147
Size:  185.5 KB
Name:  11083641_10104020568545882_6980897790562610315_n_zps3tics6ys.jpg
Views: 144
Size:  239.8 KB
Name:  11150873_10104032868631412_2320595121813653609_n_zpsedzprn1k.jpg
Views: 152
Size:  74.1 KB

Last edited by glenbjackson; 02-12-2016 at 12:28 AM. Reason: adding post wrong way
Reply With Quote
  #5
Old 04-11-2015, 12:03 PM
glenbjackson's Avatar
1st Gear
Thread Starter

Join Date: Jul 2014
Location: hampton, va
Posts: 39
Default

trans mount
Name:  11149510_10104020565312362_213817606995301941_n_zpsmo4i016s.jpg
Views: 146
Size:  142.7 KB
Template. I don't any blind punch screws
Name:  10359207_10104020564419152_8893084920594783655_n_zpsjybwv1av.jpg
Views: 146
Size:  87.4 KB
Name:  10418886_10104020564009972_5222175898117366284_n_zpsopafncqp.jpg
Views: 147
Size:  31.1 KB
Name:  11133827_10104020563725542_501309926515361218_n_zpsmsghlowo.jpg
Views: 144
Size:  195.1 KB
Name:  11134164_10104020562942112_9069448941244397544_n_zpsqdqs7t52.jpg
Views: 145
Size:  233.6 KB
Name:  11082582_10104020562163672_3531352740325098284_n_zpstymkrohs.jpg
Views: 147
Size:  230.0 KB


clutch
these are cheap on ebay
I have to get a custom button flywheel made
and buy some disc with audi's spline(tilton)
all that is still cheaper then what ive found for the price of the flywheel to fit the 8-bolt 4.2l 40v crank and a clutch.

Name:  11083919_10104020555811402_3425022150220818901_n_zpsa3vsp7aw.jpg
Views: 149
Size:  189.9 KB
Name:  11060938_10104020554953122_9126425352377577088_n_zps9ghi7ssd.jpg
Views: 177
Size:  181.7 KB
Name:  11138162_10104020554015002_4642893747062080327_n_zpsuzn1rcb6.jpg
Views: 150
Size:  194.7 KB
Name:  11149241_10104020553276482_4451502622672630185_n_zps5tulwgvb.jpg
Views: 147
Size:  165.7 KB

Last edited by glenbjackson; 02-12-2016 at 12:27 AM.
Reply With Quote
  #6
Old 04-11-2015, 12:05 PM
glenbjackson's Avatar
1st Gear
Thread Starter

Join Date: Jul 2014
Location: hampton, va
Posts: 39
Default

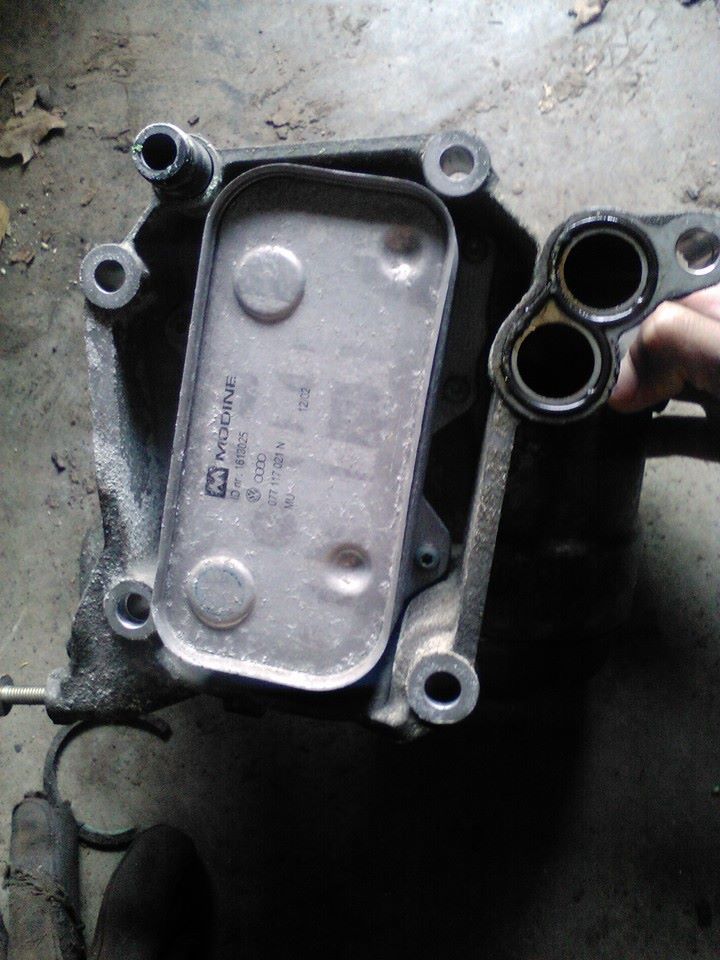

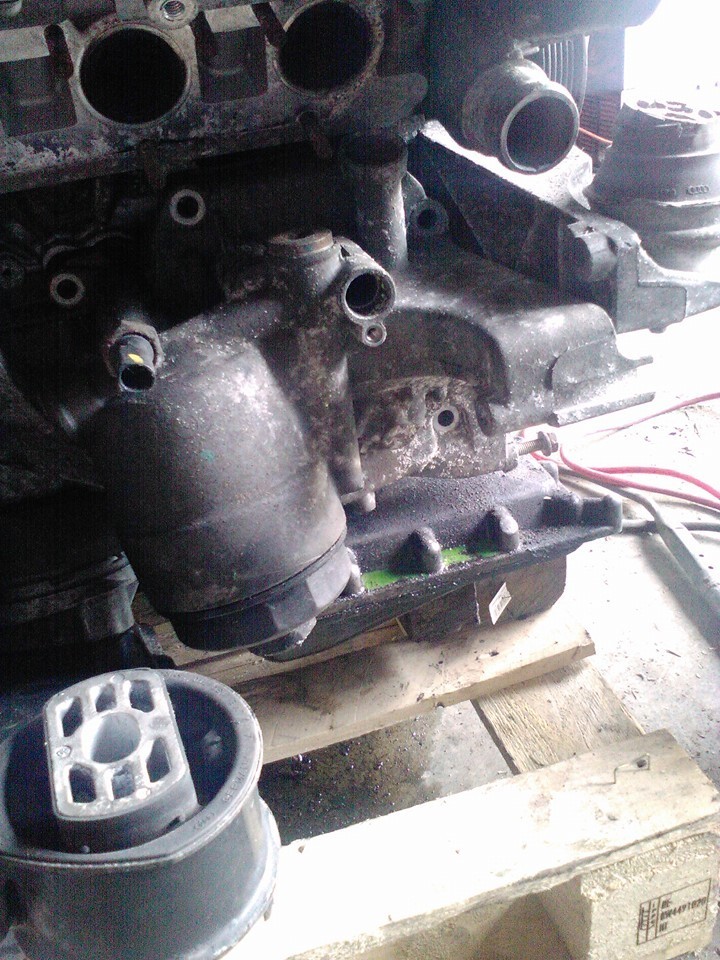

finally enginemoving oil cooler and it'll be air cooled
Name:  11150401_10104032870612442_4357998360356270162_n_zpsdh6a1jad.jpg
Views: 147
Size:  222.2 KB
Name:  11110170_10104032874409832_1899332923478651568_n_zps9mg6vngr.jpg
Views: 146
Size:  101.7 KB
Name:  11137125_10104032875447752_4488376638805110007_n_zpsvgubd9w9.jpg
Views: 148
Size:  213.1 KB
screw was welded to remove a stripped screw

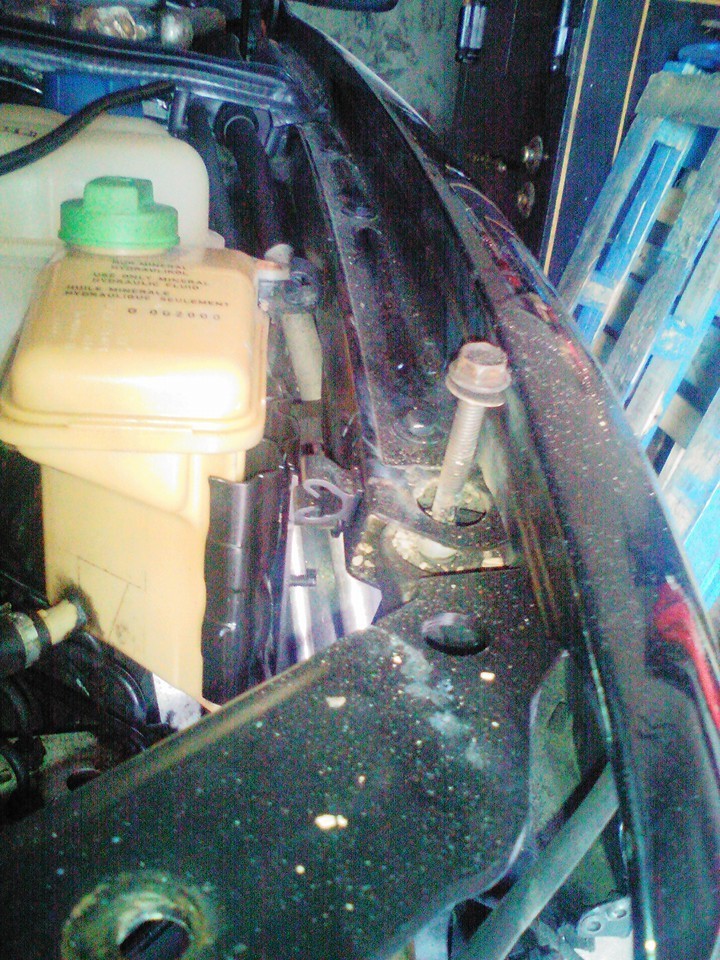

Name:  11081480_10104020582073772_4424493079144516536_n_zps9c1hhhyk.jpg
Views: 147
Size:  259.9 KB

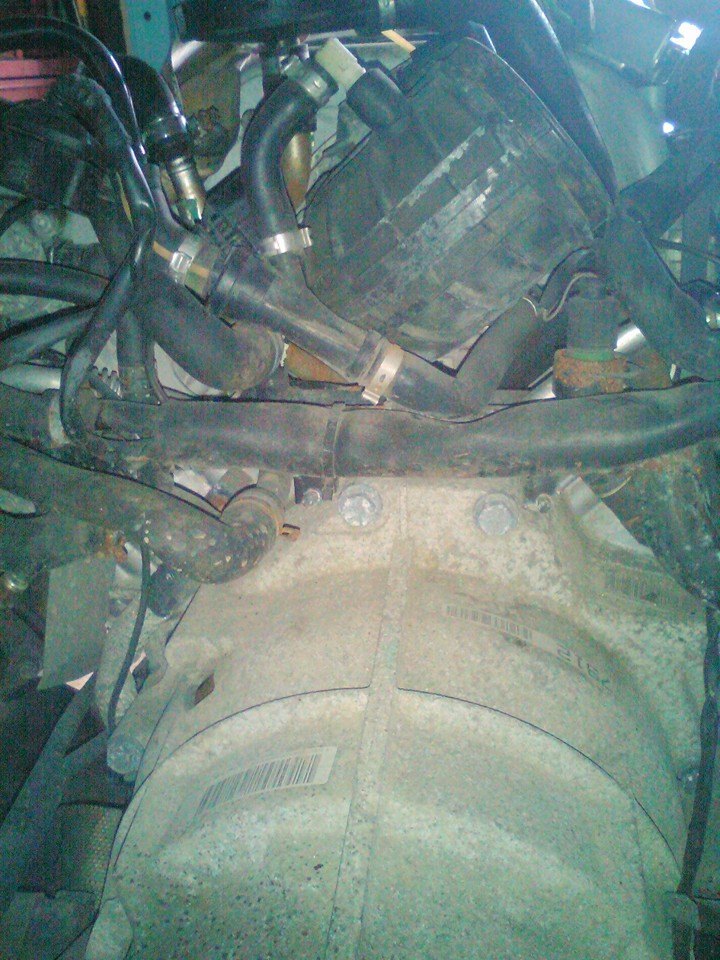

Name:  11088233_10104020566989002_5475098990985149063_n_zps2w9qq9dt.jpg
Views: 145
Size:  177.2 KB

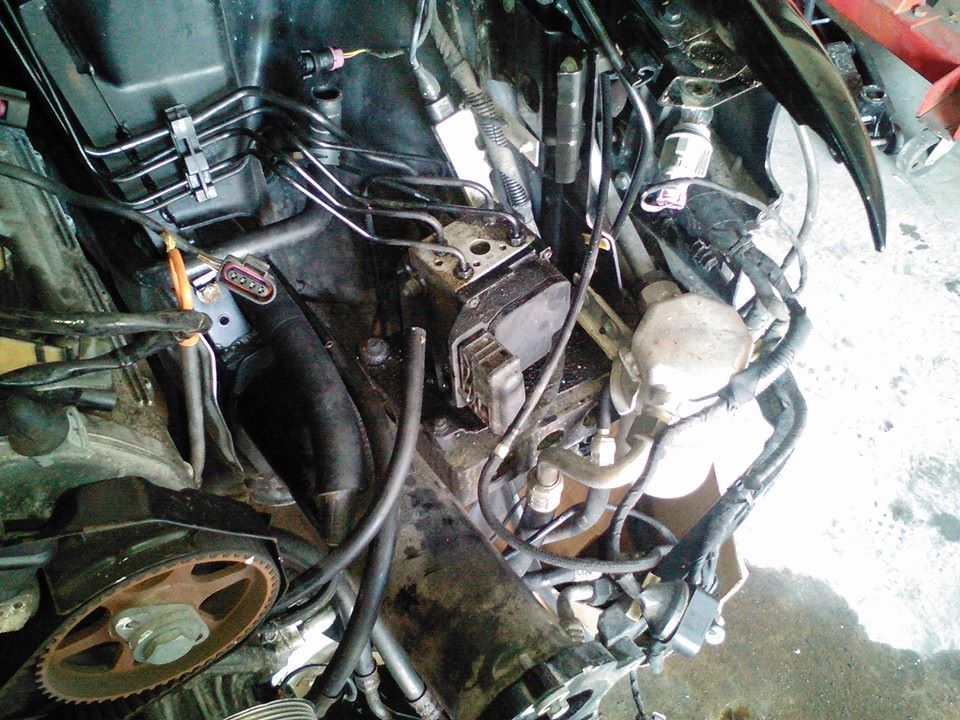

Name:  11091337_10104020576654632_2753520072087143545_n_zps7qak4twy.jpg
Views: 146
Size:  164.5 KB
Name:  11150873_10104020577887162_2869069915838651028_n_zpscln18gjp.jpg
Views: 144
Size:  213.1 KB
Name:  10988432_10104020579414102_1755539436004912646_n_zpsuhxmrotl.jpg
Views: 147
Size:  135.8 KB

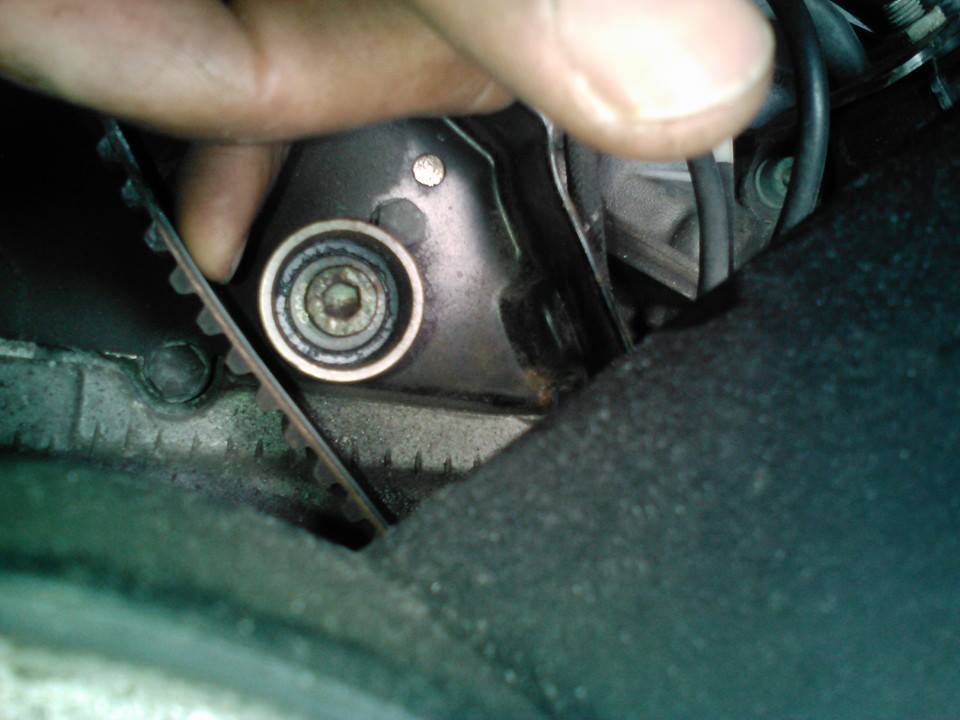

Name:  11130168_10104020579818292_7072106654538654965_n_zpsymntbt1u.jpg
Views: 144
Size:  54.9 KB
This is scary
Name:  11133840_10104020580437052_837196172746348701_n_zpsibnhx4he.jpg
Views: 148
Size:  76.7 KB

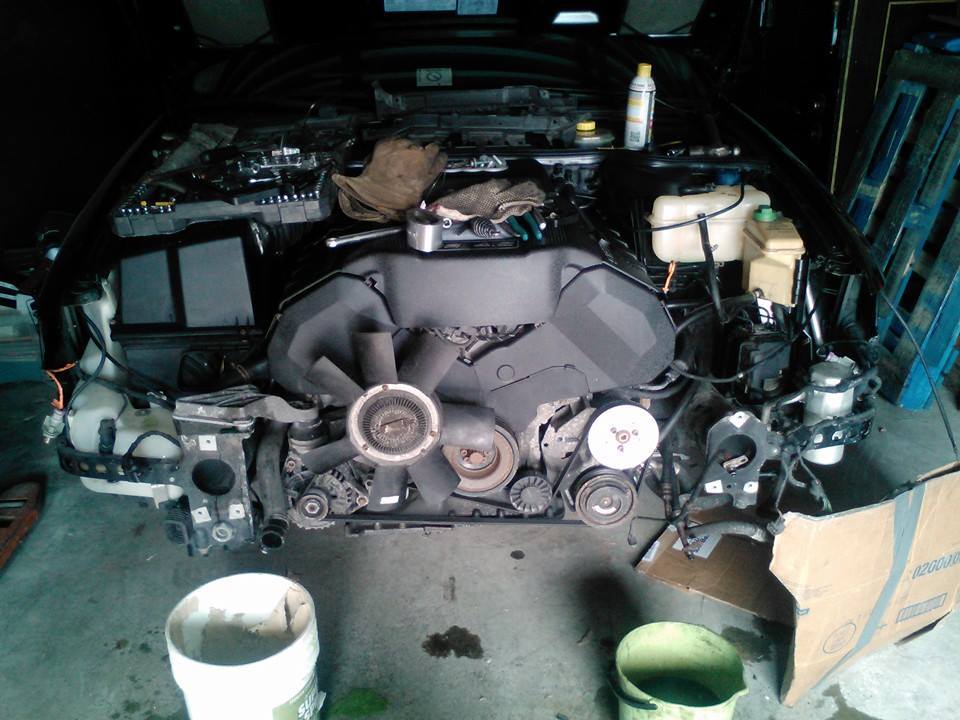

Name:  11102890_10104020581165592_5711608840630540430_n_zpsjlii6tfc.jpg
Views: 145
Size:  91.6 KB

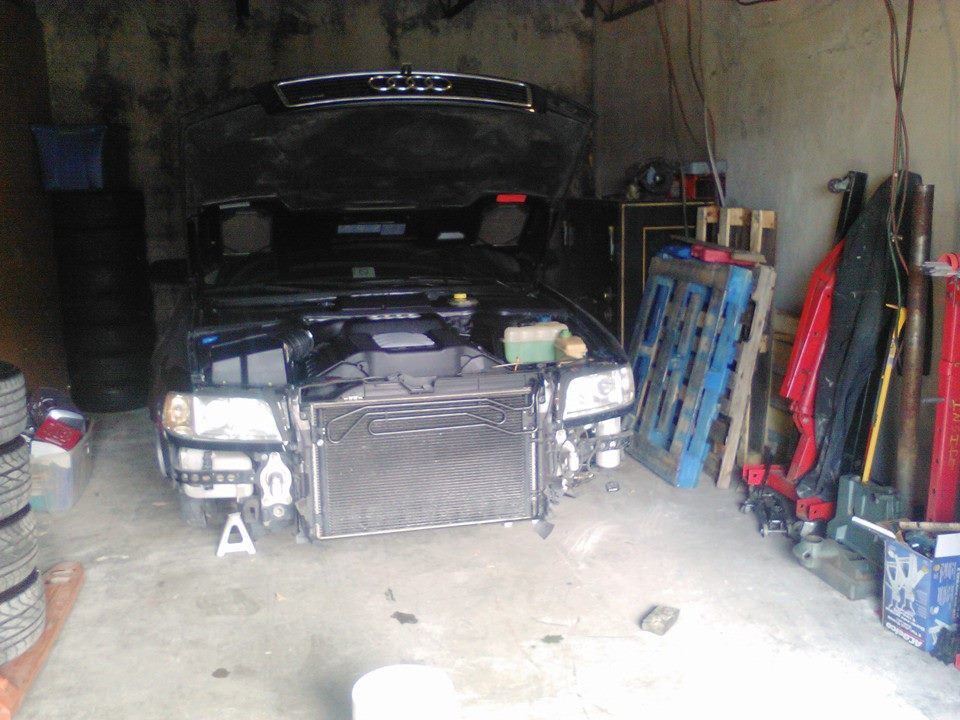

Name:  17797_10104020582617682_9043706083744232252_n_zpsofpq7gt6.jpg
Views: 142
Size:  116.8 KB

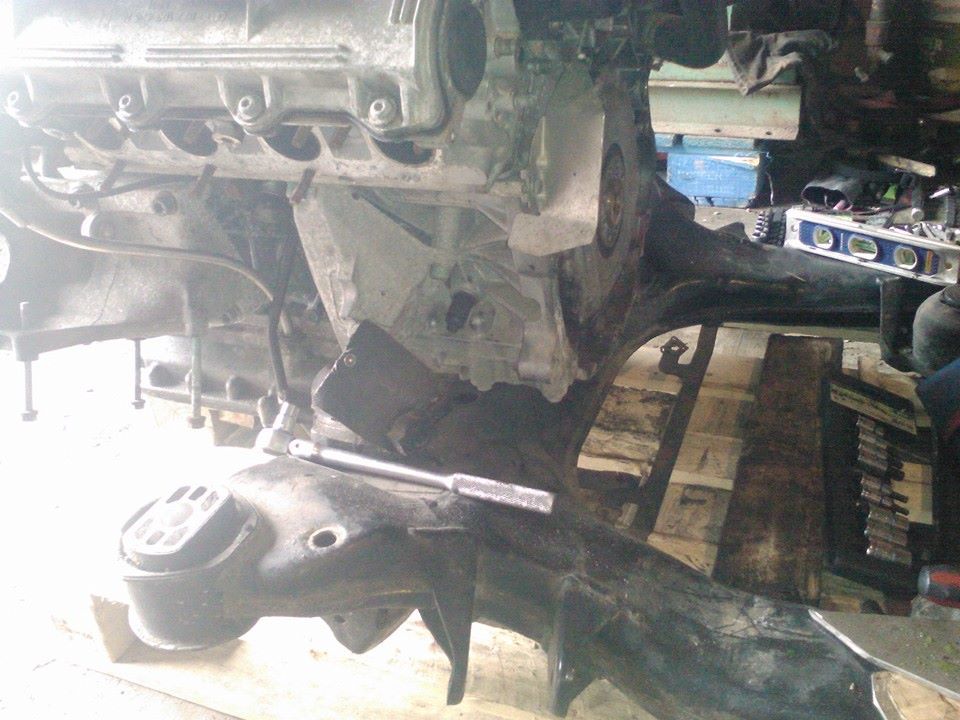

Name:  11121762_10104032860043622_6247460535053805834_n_zpsadibtsui.jpg
Views: 144
Size:  110.4 KB

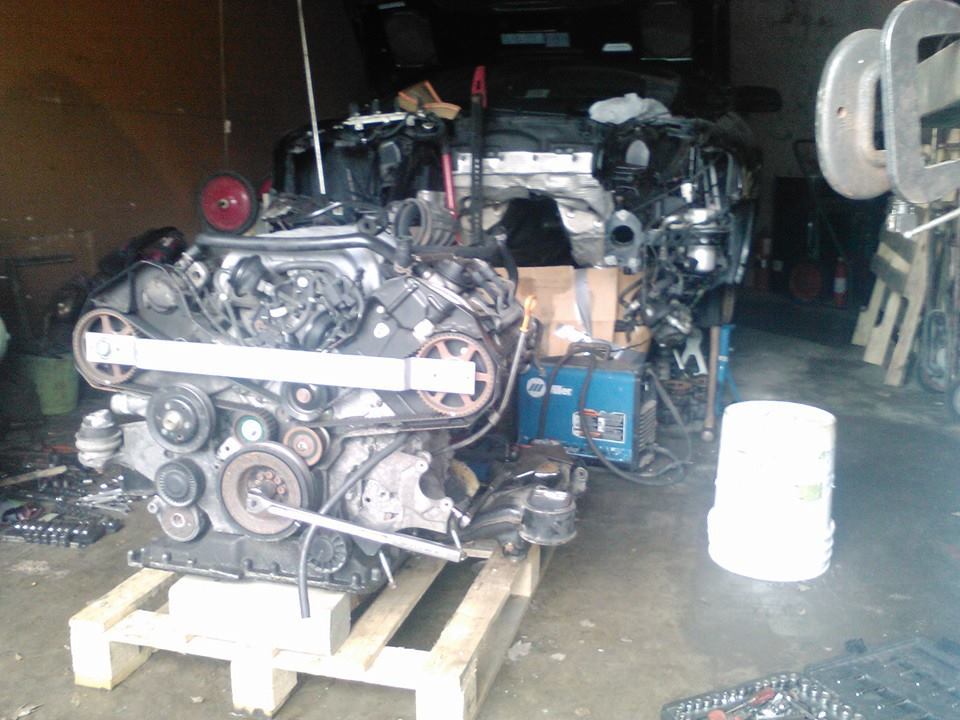

Name:  11129639_10104032864215262_8050897256727851618_n_zpsgxvtndko.jpg
Views: 175
Size:  92.9 KB

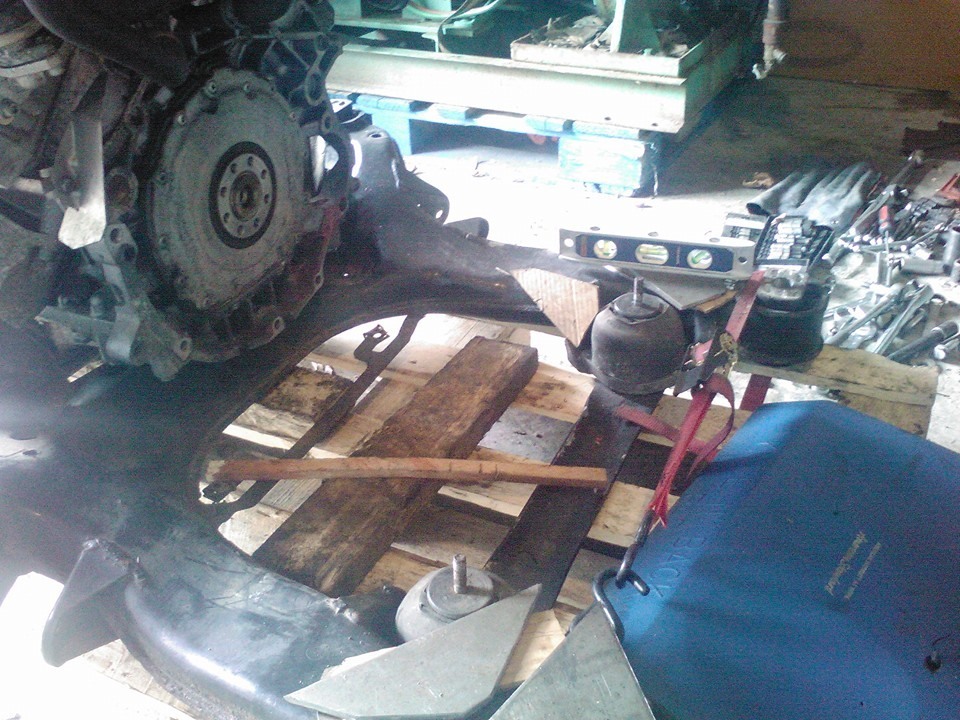

Name:  10952451_10104032871959742_6185697216718755769_n_zpspgjytiyf.jpg
Views: 178
Size:  222.5 KB
Name:  11136642_10104032872738182_6849573344345268891_n_zpsvgjvj4oi.jpg
Views: 146
Size:  202.5 KB
Name:  1513304_10104032873636382_4260722081746854733_n_zpsccobu0tt.jpg
Views: 145
Size:  170.0 KB

Last edited by glenbjackson; 02-12-2016 at 12:26 AM.
Reply With Quote
  #7
Old 06-01-2015, 08:55 AM
1st Gear

Join Date: Jun 2015
Posts: 1
Default

amazing pictures thank you.



audi servicing
Reply With Quote
  #8
Old 06-02-2015, 10:10 AM
glenbjackson's Avatar
1st Gear
Thread Starter

Join Date: Jul 2014
Location: hampton, va
Posts: 39
Default You're welcome

What project are you working on?
PS
I have some more pics.... The biggest hurdle I think.... CPS in different places on the two transmissions. Soooooooo if you wanna keep motronic then... Well y'all know the rest.

Name:  11224784_10104175465007132_3917451224730113235_n_zpshnkqcies.jpg
Views: 146
Size:  204.7 KB
Have to adjust the triggers because.........
Name:  17641_10104175464917312_7674365971768620149_n_zps8sloddfu.jpg
Views: 145
Size:  198.1 KB
CPS on 01e is above dowel pin.....
Name:  11377224_10104175464787572_8211563916506504995_n_zpsjploolkq.jpg
Views: 148
Size:  183.3 KB
CPS on auto is below dowel pin

Last edited by glenbjackson; 02-12-2016 at 12:45 AM. Reason: Add pics
Reply With Quote
  #9
Old 06-07-2015, 12:04 AM
1st Gear

Join Date: Jan 2013
Posts: 320
Default

Good for you bud, keep posting
Reply With Quote
  #10
Old 11-15-2015, 06:07 AM
glenbjackson's Avatar
1st Gear
Thread Starter

Join Date: Jul 2014
Location: hampton, va
Posts: 39
Default I'm still working on it

Ok finally got my lathe( lol lathes.... You know how when you hear a new word then all of a sudden you hear it often. Well I could not for the life of me find a big enough lathe for my custom flywheel at a good price. I was being cheap, then kept finding these things aren't cheap. So I kept upping my price still to no avail. Until last month found one on acceleratedbuysell.com. A 24N model monarch :-) 36" swing for a great price $1700 bought it and while up there also acquired a Rockland 19” for $350 smh and while buying tooling for them was sold a craftsman 6" for $40!! Lol yeah crazy, couldn't find one now I got too many.)
So now I can start back with this project. Well not exactly gotta convert to single phase or get 3 phase power. Surplus gov generator still run high so I'm thinking the former. But we'll see.
PS I figured a way to adjust the CPS correctly while learning about turning and milling. Use a dividing head. That will give me exact 360 increments.
Monarch 36.5" swing smh
Name:  monarch_zps1nxrbbpl.jpg
Views: 180
Size:  141.0 KB
Name:  monarch%202_zpst4kblrdo.jpg
Views: 148
Size:  134.5 KB
Name:  monarch%208_zpsw7imod63.jpg
Views: 147
Size:  114.6 KB
Name:  monarch%207_zpsfwwxurqn.jpg
Views: 148
Size:  182.9 KB
Name:  monarch%206_zpspnjjfgdp.jpg
Views: 178
Size:  132.2 KB
Name:  monarch%205_zpszwrosg2v.jpg
Views: 179
Size:  131.5 KB
Name:  monarch%204_zpsz1j68ywr.jpg
Views: 147
Size:  118.7 KB
Name:  monarch%203_zps3qwcak3g.jpg
Views: 180
Size:  132.1 KB
Name:  KIMG0037_zps9hz6aqms.jpg
Views: 145
Size:  232.3 KB
Name:  KIMG0035_zpssaszypos.jpg
Views: 147
Size:  360.6 KB
Name:  KIMG0034_zpsftcfcvoo.jpg
Views: 148
Size:  193.6 KB
Rockland 19"
Name:  rockland%205_zpsqezn70ft.jpg
Views: 146
Size:  110.5 KB
Name:  Rockland_zpsae0may8c.jpg
Views: 172
Size:  85.0 KB
Name:  rockland%204_zps0errqiko.jpg
Views: 179
Size:  102.5 KB
Name:  Rockland%203_zps7dihdrhm.jpg
Views: 146
Size:  111.6 KB
Name:  rockland%202_zpsq5gb4ybq.jpg
Views: 144
Size:  110.8 KB

my little craftsman 6"
Name:  craftsman_zps3pzrmmdl.jpg
Views: 147
Size:  444.5 KB

Last edited by glenbjackson; 02-12-2016 at 12:25 AM.
Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
automatic tiptronic newtoaudi04 General Tech 2 03-19-2012 01:56 PM
tiptronic vs 5 speed manual Gr1m310 B5 Models 22 03-01-2010 06:05 PM
HELP: Should i order the 6 speed manual or the automatic!! 2009A4Sline B8 Models 12 01-08-2009 02:26 PM
Converting 6 speed manual to Automatic michael_aristides Audi A3 3 06-16-2007 02:44 PM
I have a Automatic/ Tiptronic A4 2004. Tiptronic buttons? YFZFourFifty Audi A4 6 07-25-2005 01:56 AM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Advertising
Featured Sponsors

All times are GMT -4. The time now is 05:35 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
